Applications :

• The cables are used as cabling for the relays and electronic equipments in the Traffic Control Center and Trackside Equipment Shelter. The cables are suitable for indoor interconnection of railway network equipments.

Standards :

• SNCF CT 455

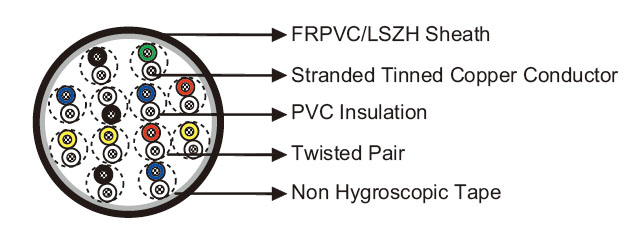

Construction :

• Conductors : Class 5 stranded tinned copper,1 mm2 or 0.38 mm2 cross section.
• Insulation : Coloured PVC.
• Cabling Element : Pairs (for ZUG/ZUT)/Cores (for SUG).
• Core wrapping (optional) : Plastic tape(s) with overlapping.
• Screen (optional) : Tinned copper braid for electrostatic protection (only for ZUT type).
• Sheath : Black FRPVC compound. LSZH option can be offered upon request.

Electrical Characteristics at 20 °C :

• No. of Strands/ Strand Diameter	No/mm	12/0.2	32/0.2
  Nominal Cross Section Area	mm2	0.38	1
  Maximum Conductor Resistance (DC)	Ω/km	52.5	20.1
  Operating Voltage	V	450/750	450/750

Mechanical and Thermal Properties :

• Minimum Bending Radius : 4xOD (static); 8xOD (dynamic)
• Operating Temperature : -15°C to +70°C

Dimensions and Weight :



  ZUG Cables



Cable Code	Number of Pairs	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
12/0.2mm Conductor, 1.4mm Insulated Wire
RS/ZUG-075-YY-28P0.38S	28	0.7	15.7	310
32/0.2mm Conductor, 2.09mm Insulated Wire
RS/ZUG-075-YY-1P1S	1	0.7	7.0	59
RS/ZUG-075-YY-3P1S	3	0.7	9.9	108
RS/ZUG-075-YY-6P1S	6	0.7	12.4	184
RS/ZUG-075-YY-12P1S	12	0.7	15.7	335



  SUG Cables



Cable Code	Number of Conductors	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
32/0.2mm Conductor, 2.09mm Insulated Wire
RS/SUG-075-YY-3C1S	3	0.7	8	73



  ZUT Cables



Cable Code	Number of Pairs	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
32/0.2mm Conductor, 2.09mm Insulated Wire
RS/ZUT-075-YCY-2P1S	2	0.7	9.5	122
RS/ZUT-075-YCY-6P1S	6	0.7	13.5	276
RS/ZUT-075-YCY-12P1S	12	0.7	17.5	445





Rated voltage	Laid In Cable Tray		Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1
